Application types
1

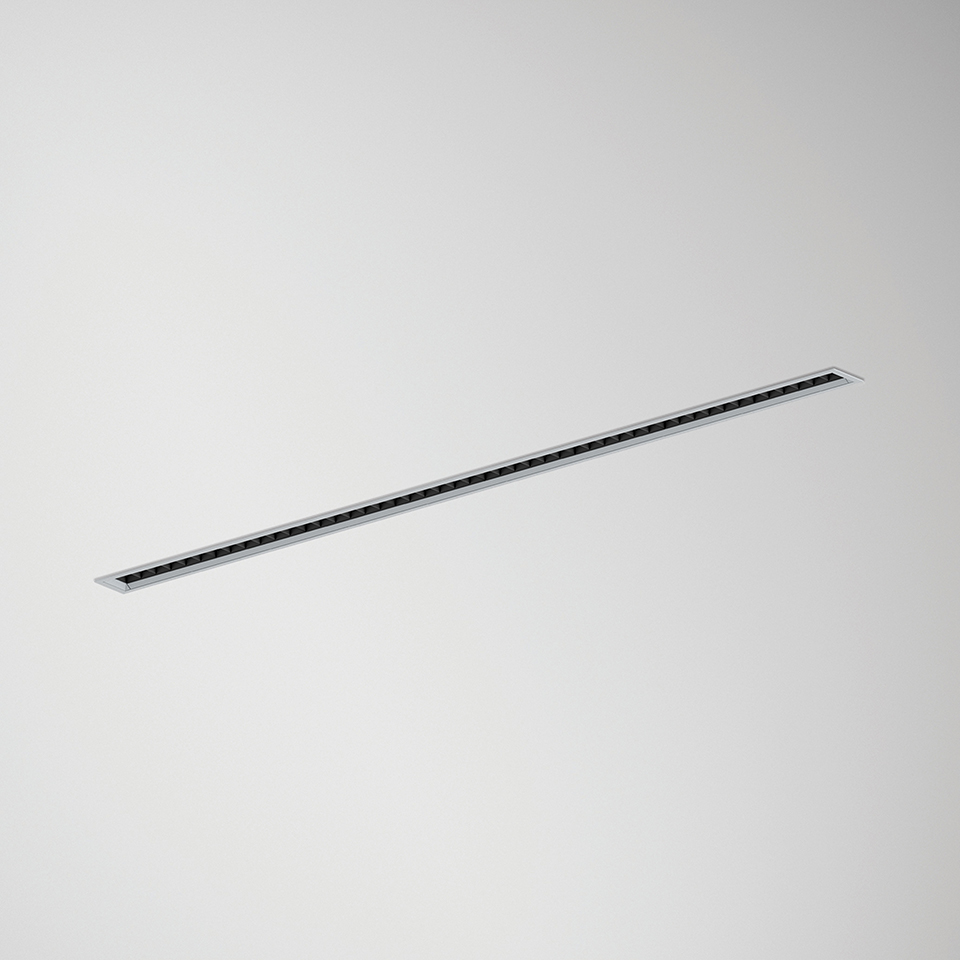

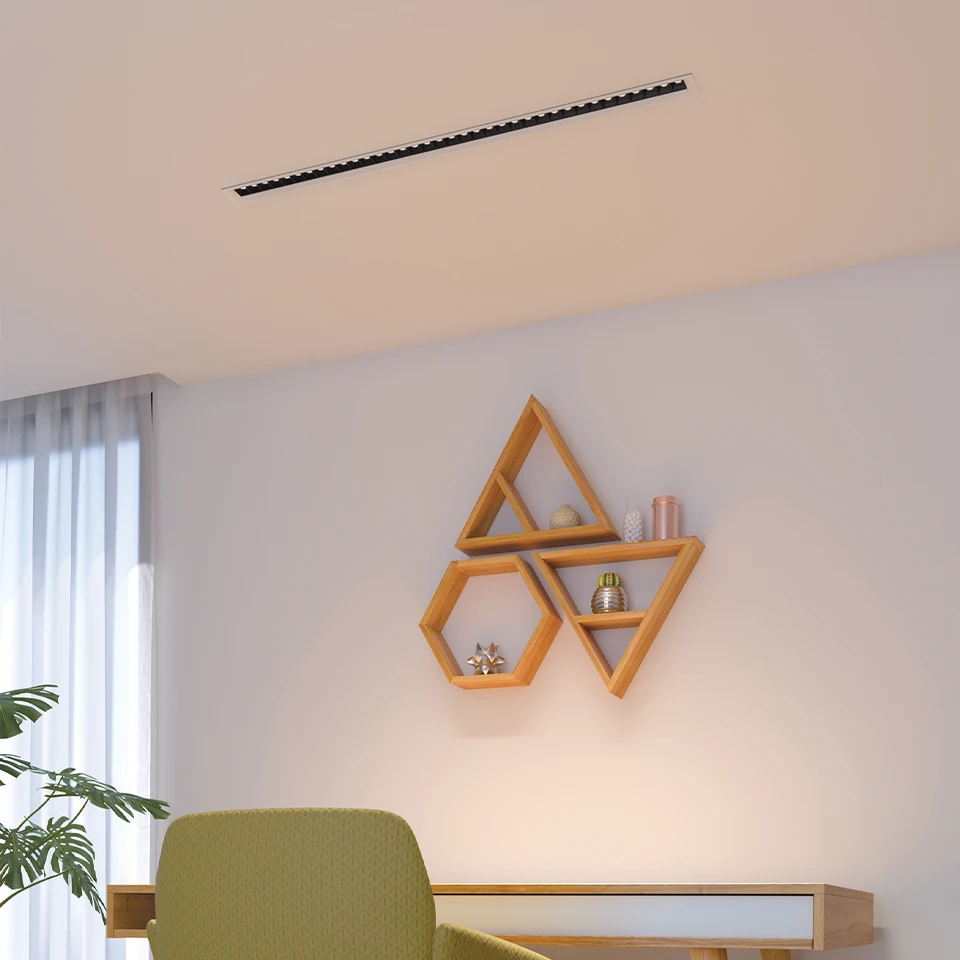

Recessed
2
Surface mounted
3

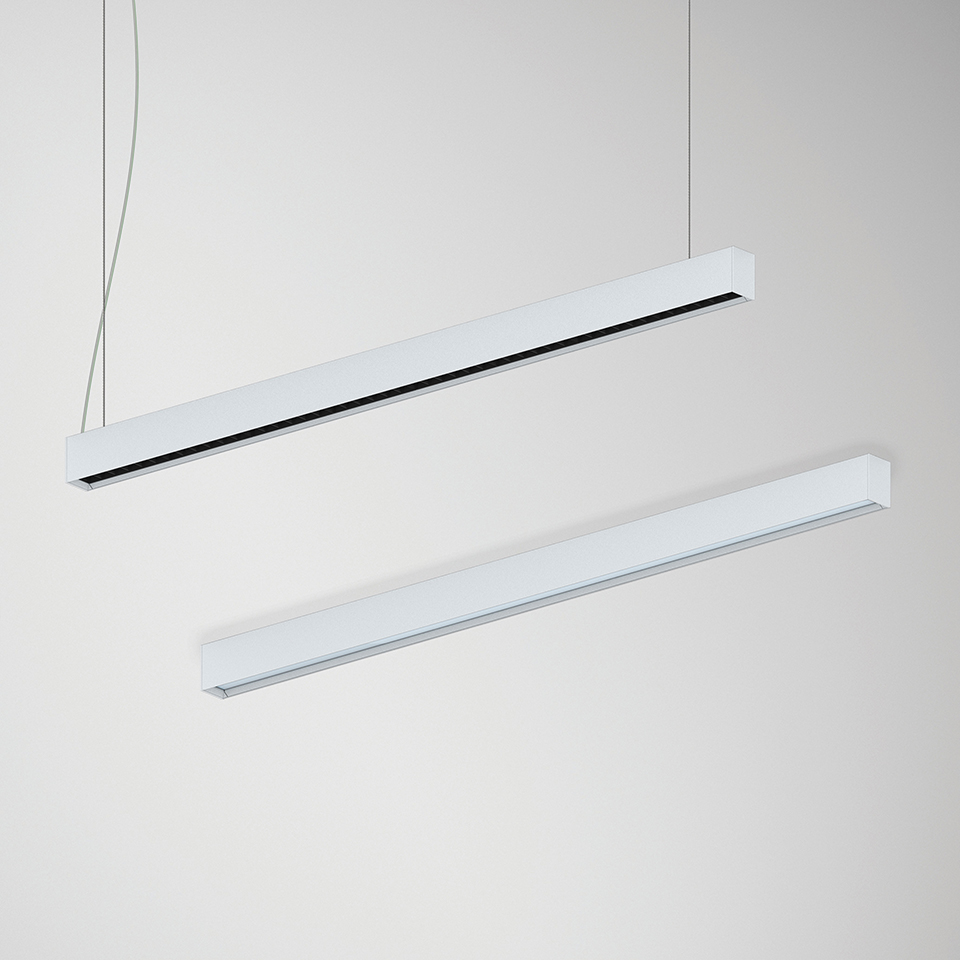

Suspended

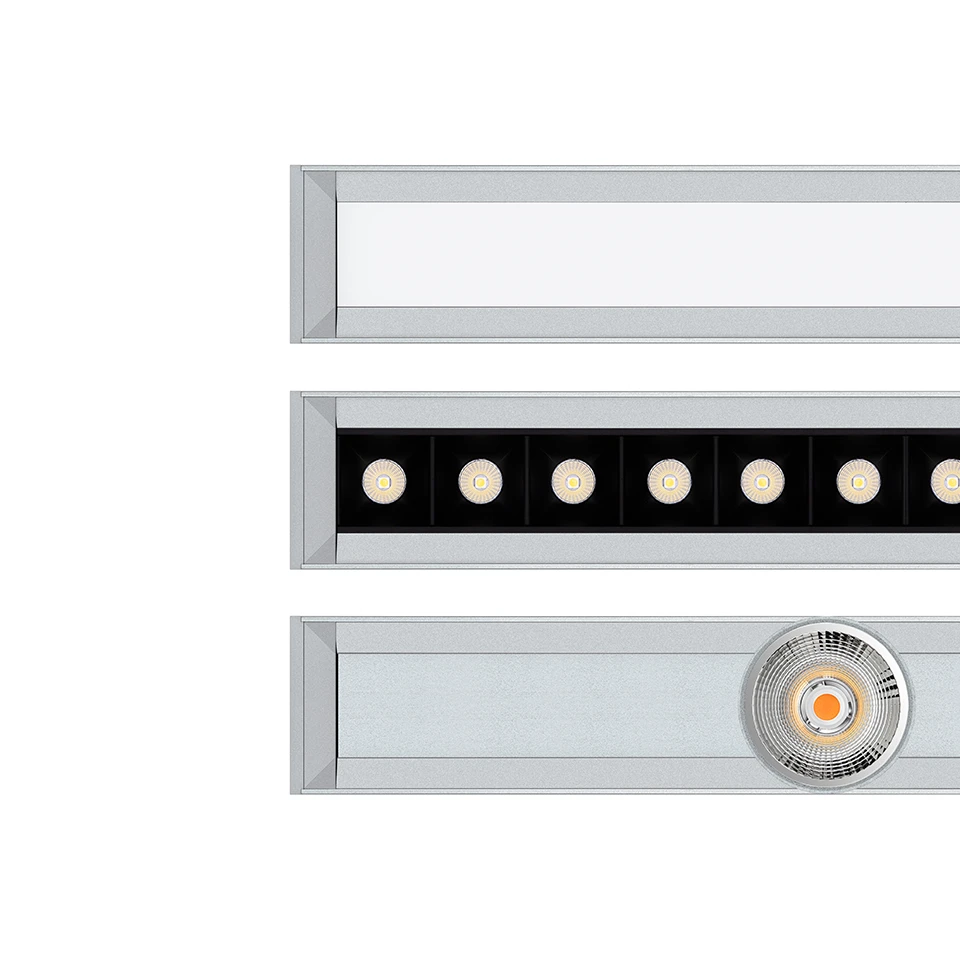

Optical system
bFLEX
bOPTICS
SPOT- 20º
SPOT- 50º

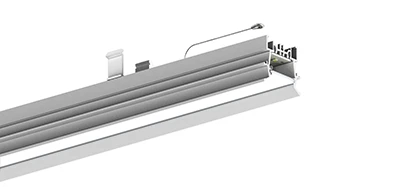

bFLEX

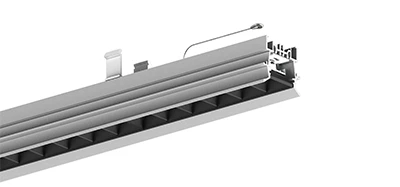

bOPTICS

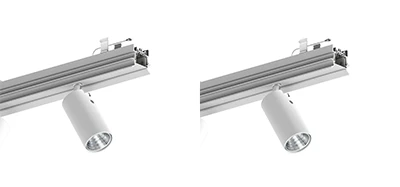

SPOT- 20º
SPOT- 50º
Minimalism and technology
1
Outer profile
Extruded aluminium profile, available in 3 colours.
2
LED
SDCM MacAdam ≤3, 3000K / 4000K colour temperature, CRI>80 and 80.000h lifetime L90 B10.
3
bOPTICS, bFLEX or SPOT
High-tech optical system with bOPTICS reflector for high visual comfort lighting (UGR<10), bFLEX opal diffuser that guarantees soft and uniform light without visible spots, or in the version with 1, 2 or 3 SPOTS for more directional lighting.
4
End caps
End caps with no visible screws and without light leakage. Available in the same colour as the product.
5
HF or dimmable DALI driver
6

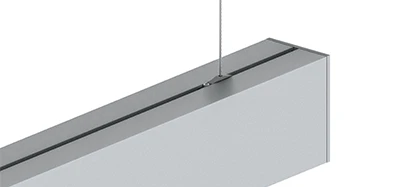

Suspension and current supply cable
Suspension kit and current supply cable available in 1500, 3000 or 6000 mm length.
7

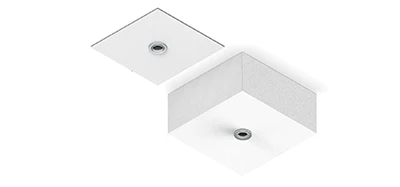

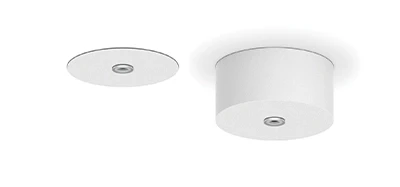

Ceiling roses
Ceiling roses in recessed or surface mounted versions, available in black or white colour.
8

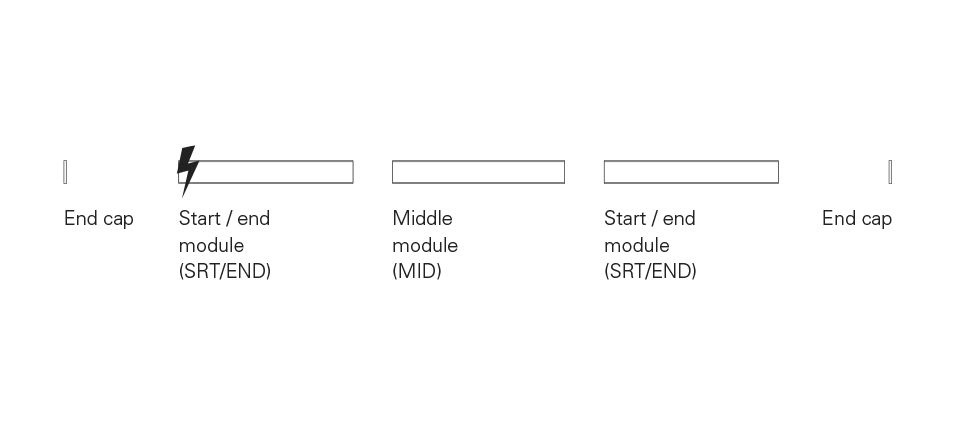

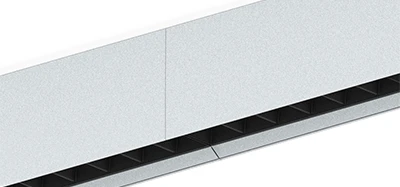

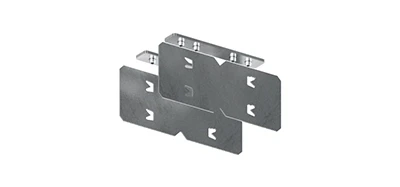

Body connector
The two profiles are seamlessly connected to avoid light leakage in any continuous line application.
9
Emergency unit
3h emergency unit. Available above ≈1276 mm.
1
End caps
2
Outer profile
3
Inner profile
4
Body connectors
5
Ceiling roses
6
Current supply cable
7
Suspension
